鍍鋁鋅板卷

鍍鋁鋅（GL）

規格：Product nameGalvalume steel coilStandardASTM JIS EN AS AISIThickness0.12mm-2.5mmAZ coatingAZ 50-225g/m2Width600mm-1500mmMaterialHot-dipped galvalume steel sheet & coilGradeSGLCC SGLC340 SGLC400 SGLC440 SGLC570Surface treatmentChromated Ant…

規格：

Product name	Galvalume steel coil
Standard	ASTM JIS EN AS AISI
Thickness	0.12mm-2.5mm
AZ coating	AZ 50-225g/m2
Width	600mm-1500mm
Material	Hot-dipped galvalume steel sheet & coil
Grade	SGLCC SGLC340 SGLC400 SGLC440 SGLC570
Surface treatment	Chromated Anti-finger print skin-passed oiled dry
Application	Archiecture,building and applicance industry

	JIS G3302		ASTM A653 ( A653M)	EN		AS	Yield Strengh	Tensile Strength	Elongation
	Hot Rolled	Cold Rolled	ASTM A653 ( A653M)	10142	10147	1397	N/MM2	N/MM2	A50 or A80%
CQ	SGLHC	SGLCC	CS	DX51D			---	500max	22min
FQ	----		FS	DX52D			300max	420max	26min
DQ		SGLCD1	DDS/EDDS	DX53D			260max	380max	30min
SQ	SGLH340	SGLC340	Gr.230		S220GD	G250	245min	340min	20min
	SGLH400	SGLC400	Gr.255		S250GD	G300	295min	400min	18min
	SGLH440	SGLC440	Gr.275		S280GD		335min	440min	18min
	---	---	---		S320GD		320min	390min	17min
	SGLH490	SGLC490	Gr.450		S350M2	G450	450min	500min	10min
	SGLH540	SGLC570	Gr.550		S550GD	G550	550min	570min	---
	---	SGLCH	---		----	---	---	---	---

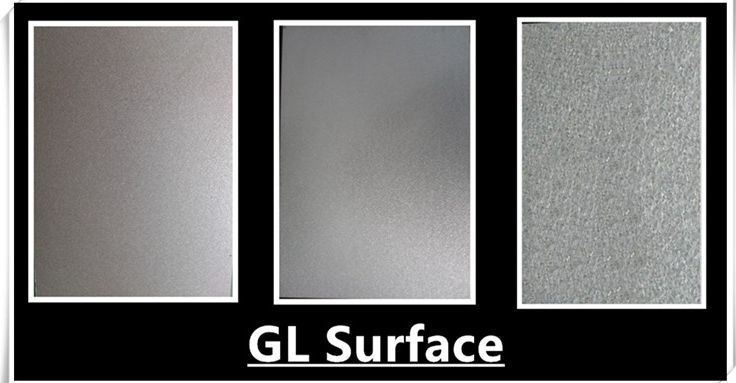

表面鋅花：

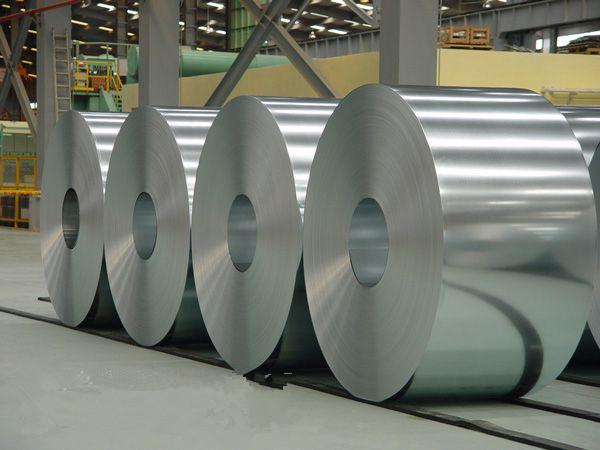

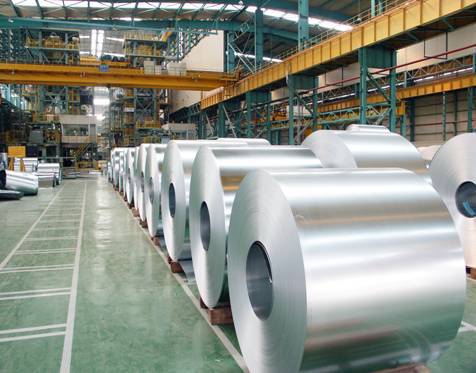

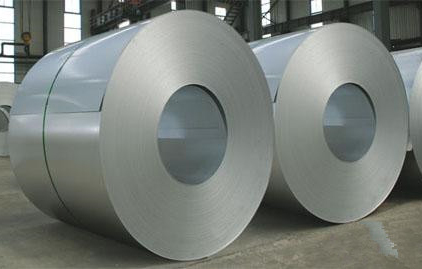

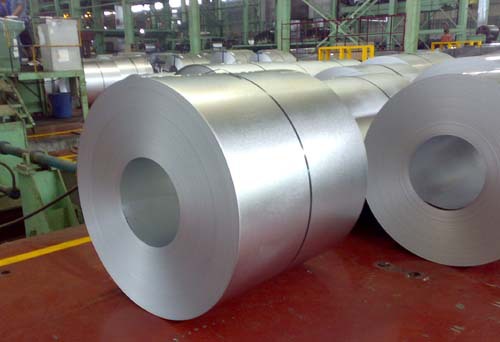

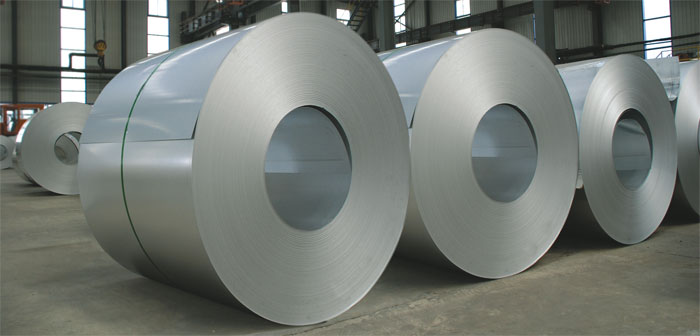

Photos and packaging products like galvanized:
